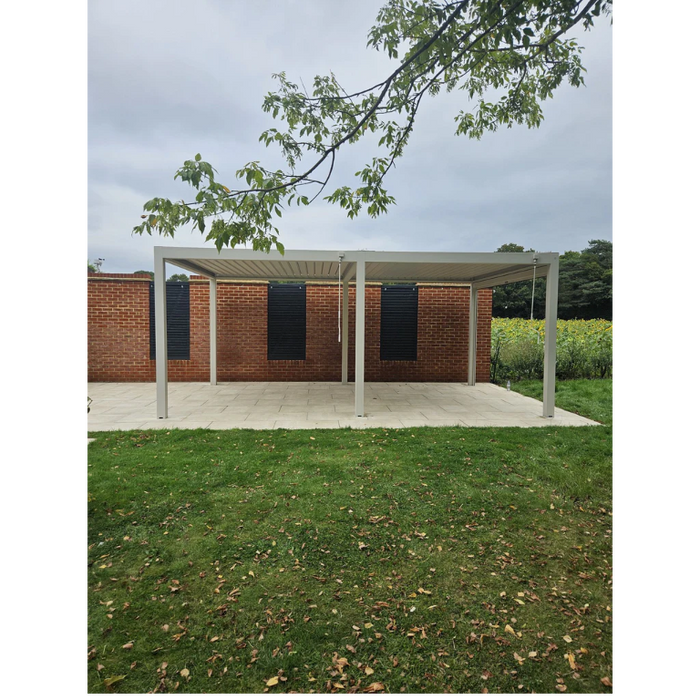

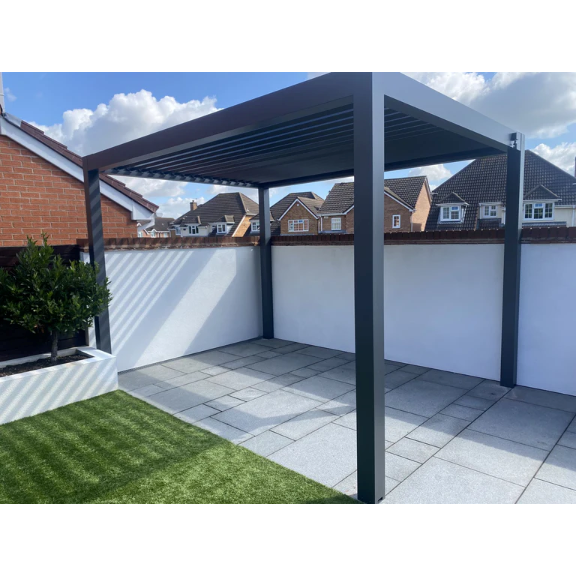

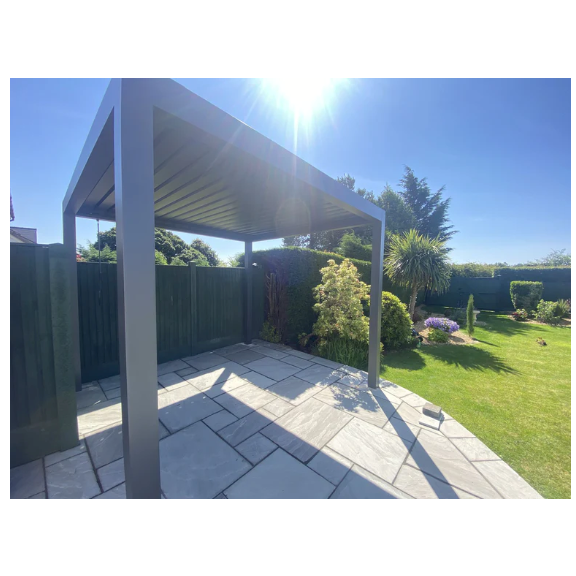

The Sanctuary Manual Louvered Aluminium Pergola

The Sanctuary Manual Louvered Aluminium Pergola

by Acre & Artisan
£4,150.00 - £4,150.00
£4,150.00
£4,150.00 - £4,150.00
£4,150.00

Take complete control of your outdoor climate with the Luxe Manual Louvered Roof Pergola.
Engineered with an ultra-smooth manual winding mechanism, this premium architectural structure
allows you to rotate the overhead aluminium louvres seamlessly—letting the perfect amount of British
sunlight in or closing them fully for a 100% watertight seal against unexpected rain. Complete with
integrated LED lighting to set the perfect evening mood, it serves as a beautiful, high-value shelter for
your premium lounge modules or outdoor dining spaces.

KEY FEATURES

  • Fully motorized, remote-controlled louvered roof system for instant climate adaptation.
  • Seamlessly integrated perimeter LED tracking built straight into the internal frame.
  • 100% weatherproof internal guttering system built directly into the support pillars.
  • Heavy-gauge, powder-coated structural aluminum that is completely rust-proof and wind-tested.
  • Seamlessly compatible with integrated pull-down side screens or shutter panels



Specification & Dimensions ▼

Product Dimensions

3M BASE / 4 LEGS 3.0 X 2.75 3.0 X 3.0 3.0 X 3.60 3.0 X 4.0
A Width (m) 3.05 3.05 3.05 3.05
B Length (m) 2.75 3.05 3.65 3.95
C Inside footplate length (m) 2.51 2.81 3.41 3.71
D Height (m) 2.50 2.50 2.50 2.50
E Inside footplate width (m) 2.81 2.81 2.81 2.81
3M BASE / 6 LEGS 3.0 X 5.4 3.0 X 6.0 3.0 X 7.20 3.0 X 8.0
A Width (m) 3.05 3.05 3.05 3.05
B Length (m) 5.38 5.98 7.18 7.78
C Inside footplate length (m) 2.51 2.81 3.41 3.71
D Height (m) 2.50 2.50 2.50 2.50
E Inside footplate width (m) 2.81 2.81 2.81 2.81
3M BASE / 8 LEGS 3.0 X 9.0 3.0 X 10.0 3.0 X 11.0 3.0 X 12.0
A Width (m) 3.05 3.05 3.05 3.05
B Length (m) 8.91 9.81 10.71 11.61
C Inside footplate length (m) TBC TBC TBC TBC
D Height (m) 2.50 2.50 2.50 2.50
E Inside footplate width (m) 2.81 2.81 2.81 2.81
3.6M BASE / 4 LEGS 3.6 X 2.75 3.6 X 3.0 3.6 X 3.6 3.6 X 4.0
A Width (m) 3.65 3.65 3.65 3.65
B Length (m) 2.75 3.05 3.65 3.95
C Inside footplate length (m) 2.51 2.81 3.41 3.71
D Height (m) 2.50 2.50 2.50 2.50
E Inside footplate width (m) 3.41 3.41 3.41 3.41
3.6M BASE / 6 LEGS 3.6 X 5.4 3.6 X 6.0 3.6 X 7.2 3.6 X 8.0
A Width (m) 3.65 3.65 3.65 3.65
B Length (m) 5.38 5.98 7.18 7.78
C Inside footplate length (m) 2.51 2.81 3.41 3.71
D Height (m) 2.50 2.50 2.50 2.50
E Inside footplate width (m) 3.41 3.41 3.41 3.41
3.6M BASE / 8 LEGS 3.6 X 9.0 3.6 X 10.0 3.6 X 11.0 3.6 X 12.0
A Width (m) 3.65 3.65 3.65 3.65
B Length (m) 8.91 9.81 10.71 11.61
C Inside footplate length (m) TBC TBC TBC TBC
D Height (m) 2.50 2.50 2.50 2.50
E Inside footplate width (m) 3.41 3.41 3.41 3.41
